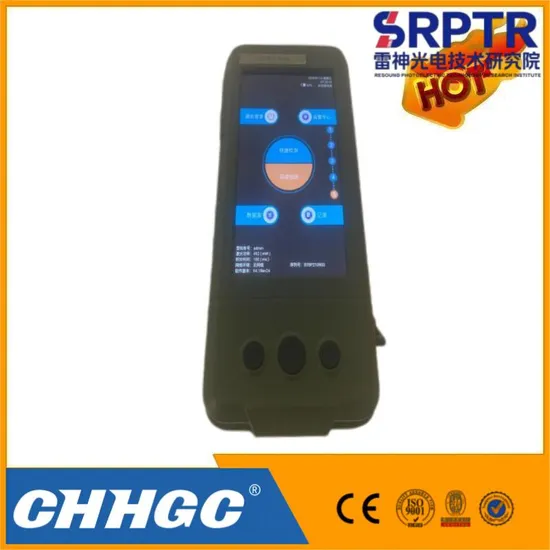

Compact Hand Held Raman Spectrometer

Basic Info.

Model NO.	LSPEC 510
Detection Mode	Quick Detection and Deep Detection
Transport Package	Carton Box Outside, Protect Box Inside
Specification	182*88*30mm
Trademark	CRT
Origin	China
HS Code	9031809090

Product Description

Detection range
Common chemical DJS: GB,VX,HD,GD and other at least 11 common chemical DJS ;
Highly toxic chemicals: acrylic,ethyl nitrite,dinitrophenol, acrolein,chloroacetone,ethyl chloroformate,dichlorvos,
DDT(dichlorophenyl trichloroethane)and other at least 10 substances;

Explosives and inflammable and explosive dangerous
goods:TNT (2,4,6-trinitrotoluene),RDX,2,4,
6-trinitrophenylamine,tetrahydrofuran,gasoline,
ethanol,acetone,ether,toluene,ethyl acetate and other at least 21 substances.

Product characteristicsSupport 4 or more mixtures identification,and high accuracy.The depth of mixture Integrate(recogniti)d(o)n crefl(an)etiv(e)e(cus)space(tomiz)ed; light path,high sensitivity,small aberration,long servicelife; The sensitivity of integrated spatial optical path is 2~5 times that of optical fiber path, and the actual detection time is shortened by 2~5 times.Easy to change the battery and has a long battery life (24 hours),the equipment can bereplaced in 3 seconds by hand,convenient for long-term duty continuous use; There is a complete cloud background,background equipment management,database management,test record management,software version management,cloud and local dual-domain computing and dangerous substance discovery;Wide band range,more accurate detection,more types of measurable substancesalarm and other functions.For the new contraband that may be encountered in theProduct introduction The LSPEC 510 Handheld Raman Spectrometer is a professional handheld substance identification instrument that is small and lightweight with powerful management and computing capabilities.The 785nm laser Raman spectroscopy was used as the nondestructive testing method.The equipment can carry out nondestructive testing of conventional chemical warfare agents,explosives,precursor chemicals,inflammable and explosive dangerous goods,highly toxic substances,narcotics,jewelry and jade,pharmaceutical API,and common chemicals,with simple operation and fast and accurate identification.Specification parameter

Project		Content
Adoption of technology		Raman spectral analysis technology,for the liquid substance,solid substance and powder substance in transparent packaging,the equipment can complete the detection without touching the sample,and give the specific name and spectrum of the measured object information.
Mode of operation		One hand operation,one key can complete a detection;Physical buttons for switch on,switch off,check and return
Detection mode		There are two modes:quick detection and deep detection
Database		More than 1000 species
Taking pictures		13 megapixels
Range of spectra		200-3200cm-1
Resolution of spectre		8-10cm-1
Size		182*88*30mm
Weight		490g
Adaptability to environment		Operating temperature:-20ºC~+40ºC;Temperature of storage:-20ºC~+50ºC
Distance of work		The device uses a pull-out damping probe,the working distance can be adjusted continuously,and it can easily and accurately detect bottled samples or bagged samples without accessories.
Power supply battery		Rechargeable polymer lithium battery,one used and one standby,single battery working time>4 hours,can be directly installed large capacity battery module,working time ≥12 hours.
Explosive detection mode		Support,prevent igniting samples,or allow evacuation time
Type of detection		The detection type is extensible;With the mixture alarm ability,at least can identify any proportion of miscible 3 substances
		Common chemical agents	GB,VX,HD,GD and at least 11 other common chemical agents
		Highly toxic chemical	Acrylonitrile,ethyl nitrite,Acrolein,acetone chloride,ethyl chloroformate,dichlorvos,DDT(dichlorophenyl trichloroethane)and at least 10 other substances
		Explosives andinflammable and explosive dangerous goods	TNT (2,4,6-trinitrotoluene),RDX,2,4,6-trinitrobamine,gasoline,ethanol, acetone,ether,toluene,ethyl acetate and other at least 21 substances
Sensitivity of detection		Within 10s,the ethanol aqueous solution and DMMP aqueous solution with the volume ratio of 1%in the glass sample bottle were rapidly monitored
Response time		Sample testing time ≤10s
Spectralperformance	detection	Spectral detection range:200cm²¹~300cm²¹(50um~3.3um);
		Resolution of spectra:≤12cm'
		Accuracy of spectrum:Not more than ±2cm¹(-20ºC~+48ºC),The standard silicon wafer Ramanspectrum was collected,and the Raman signal at 520.6cm¹was measured.The test was repeated for 3 times,and the difference value of each time was taken as the accuracy.
